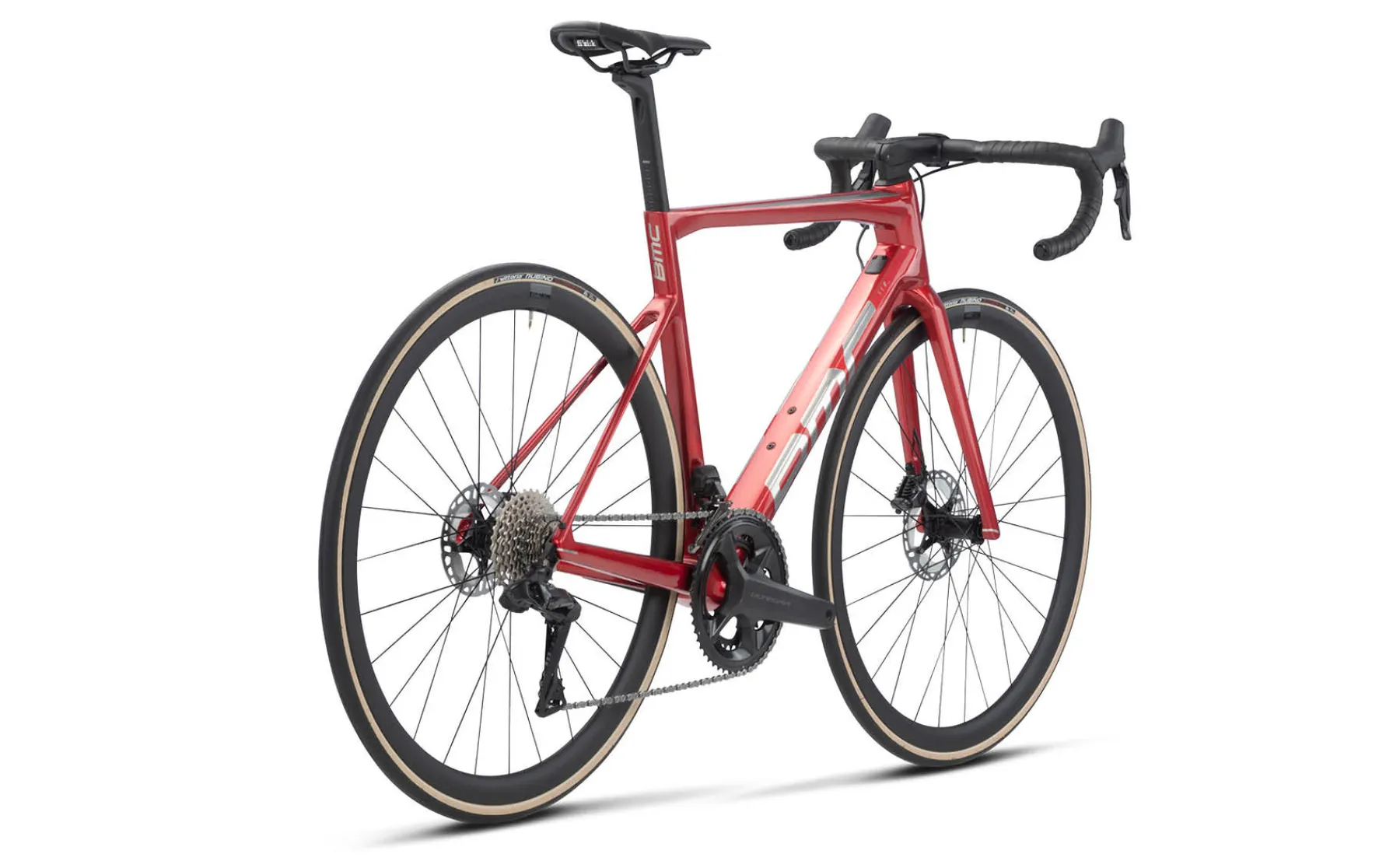

BMC Switzerland Racing^Teammachine SLR ONE
€83.72
Shimano Ultegra Di2 Gruppe
CRD-351 Carbon Laufradsatz
ICS1 Integriertes Cockpit-Design und Carbon D-Shape Sattelstütze
Die legendäre Performance der Teammachine SLR im erschwinglicheren Gesamtpaket. Mit der TCC Race Technologie im Teammachine SLR Carbonrahmen und der Gabel sowie den Stealth Dropouts und der internen Kabelführung definiert dieses Rennrad den Begriff Höchstleistung. Die hervorragende Ausstattung der Teammachine SLR ONE umfasst einen ICS1 Vorbau, eine D-Shape Carbon Sattelstütze, Shimanos neuste Ultegra Di2 12-fach Gruppe und 35mm CRD-351 Carbon Tubeless-Ready Laufräder.
Rahmenset
Rahmen:
Teammachine SLR Carbon with Aerocore Design | Stealth Dropout Design | TCC Race Compliance Level | Flat Mount Disc | 12 x 142mm Thru-Axle | Optimized for Aerocore Bottle Cages
Gabel:
Teammachine SLR Carbon | TCC Race Compliance Level | Internal Cable Routing | Flat Mount Disc | Stealth Dropout Design | 12 x 100mm Thru-Axle
Cockpit
Vorbau:
BMC ICS1 | Integrated Cockpit System Technology
Lenker:
BMC RAB 02 | Ergo Top Shape | Compact Bend
Sattel
Sattelstütze:
Teammachine SLR Carbon D-Shaped Seatpost
Sattel:
Fizik Antares R7
Antrieb
Kurbel:
SHIMANO Ultegra FC-R8100
Kettenblätter:
52-36T
Kassette:
SHIMANO Ultegra CS-R8100
Kassettengrösse:
11-30T
Kette:
SHIMANO CN-M8100
Umwerfer:
SHIMANO Ultegra Di2 FD-R8150
Schaltwerk:
SHIMANO Ultegra Di2 RD-R8150
Schalthebel:
SHIMANO Ultegra Di2 ST-R8170
Übersetzung:
2 x 12
Tretlager:
PF86 Bottom Bracket
Bremsen
Bremshebel:
SHIMANO Ultegra BR-R8170
Bremsscheiben:
SHIMANO RT-MT800
Bremsscheibengrösse (V/H):
160 / 140mm
Räder
Felgen:
CRD-351 Carbon | Tubeless Ready | 35mm
Naben (V/H):
CRD-351
Bereifung:
Vittoria Rubino | 25mm
Tubeless-Informationen:
Tubeless Ready Rims | Tubetype Tires
Weitere Informationen
Espace pour les pneus:
30mm
Classification ASTM:
Level 1
Limite de poids du système:
110kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| SCOR Size | ||||||
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Rise | ||||||
| Bar Sweep | ||||||
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| Base Bar Drop Flat Cockpit | ||||||
| Base Bar Drop V-Cockpit | ||||||
| Base Bar Reach Flat Cockpit | ||||||
| Base Bar Reach V-Cockpit | ||||||
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| BB Drop (SLACK) | ||||||
| BB Drop (STEEP) | ||||||
| BB Height (SLACK) | ||||||
| BB Height (STEEP) | ||||||
| Chainstay | ||||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||||
| LT | BB Drop (STEEP) | ||||||
| LT | BB Height (SLACK) | ||||||
| LT | BB Height (STEEP) | ||||||
| LT | Chainstay | ||||||
| LT | Fork Length | ||||||
| LT | Fork Rake | ||||||
| LT | Frame Size | ||||||
| LT | Front Center (SLACK) | ||||||
| LT | Front Center (STEEP) | ||||||
| LT | Head Tube | ||||||
| LT | HT Angle (SLACK) | ||||||
| LT | HT Angle (STEEP) | ||||||
| LT | Reach (SLACK) | ||||||
| LT | Reach (STEEP) | ||||||
| LT | Rider Height | ||||||
| LT | Seat Tube | ||||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||||
| LT | ST Angle Actual (SLACK) | ||||||
| LT | ST Angle Actual (STEEP) | ||||||
| LT | ST Angle Effective (SLACK) | ||||||
| LT | ST Angle Effective (STEEP) | ||||||
| LT | Stack (SLACK) | ||||||
| LT | Stack (STEEP) | ||||||
| LT | Stand Over Height (80 in Front of BB) | ||||||
| LT | Stand Over Height (Lowest Point) | ||||||
| LT | Top Tube (SLACK) | ||||||
| LT | Top Tube (STEEP) | ||||||
| LT | Wheelbase (SLACK) | ||||||
| LT | Wheelbase (STEEP) | ||||||
| ST | BB Drop (SLACK) | ||||||
| ST | BB Drop (STEEP) | ||||||
| ST | BB Height (STACK) | ||||||
| ST | BB Height (STEEP) | ||||||
| ST | Chainstay | ||||||
| ST | Fork Length | ||||||
| ST | Fork Rake | ||||||
| ST | Frame Size | ||||||
| ST | Front Center (SLACK) | ||||||
| ST | Front Center (STEEP) | ||||||
| ST | Head Tube | ||||||
| ST | HT Angle (SLACK) | ||||||
| ST | HT Angle (STEEP) | ||||||
| ST | Reach (SLACK) | ||||||
| ST | Reach (STEEP) | ||||||
| ST | Rider Height | ||||||
| ST | Seat Tube | ||||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST | ST Angle Actual (SLACK) | ||||||
| ST | ST Angle Actual (STEEP) | ||||||
| ST | ST Angle Effective (SLACK) | ||||||
| ST | ST Angle Effective (STEEP) | ||||||
| ST | Stack (SLACK) | ||||||
| ST | Stack (STEEP) | ||||||
| ST | Stand Over Height (80 in Front of BB) | ||||||
| ST | Stand Over Height (Lowest Point) | ||||||
| ST | Top Tube (SLACK) | ||||||
| ST | Top Tube (STEEP) | ||||||
| ST | Wheelbase (SLACK) | ||||||
| ST | Wheelbase (STEEP) | ||||||
| Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Front Center (SLACK) | ||||||
| Front Center (STEEP) | ||||||
| Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| HT Angle (SLACK) | ||||||
| HT Angle (STEEP) | ||||||
| Pad Reach Flat Cockpit | ||||||
| Pad Reach V-Cockpit | ||||||
| Pad Stack Flat Cockpit | ||||||
| Pad Stack V-Cockpit | ||||||
| Reach (SLACK) | ||||||
| Reach (STEEP) | ||||||
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Saddle Height Range | ||||||
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Drop | ||||||
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST Angle Actual (SLACK) |
